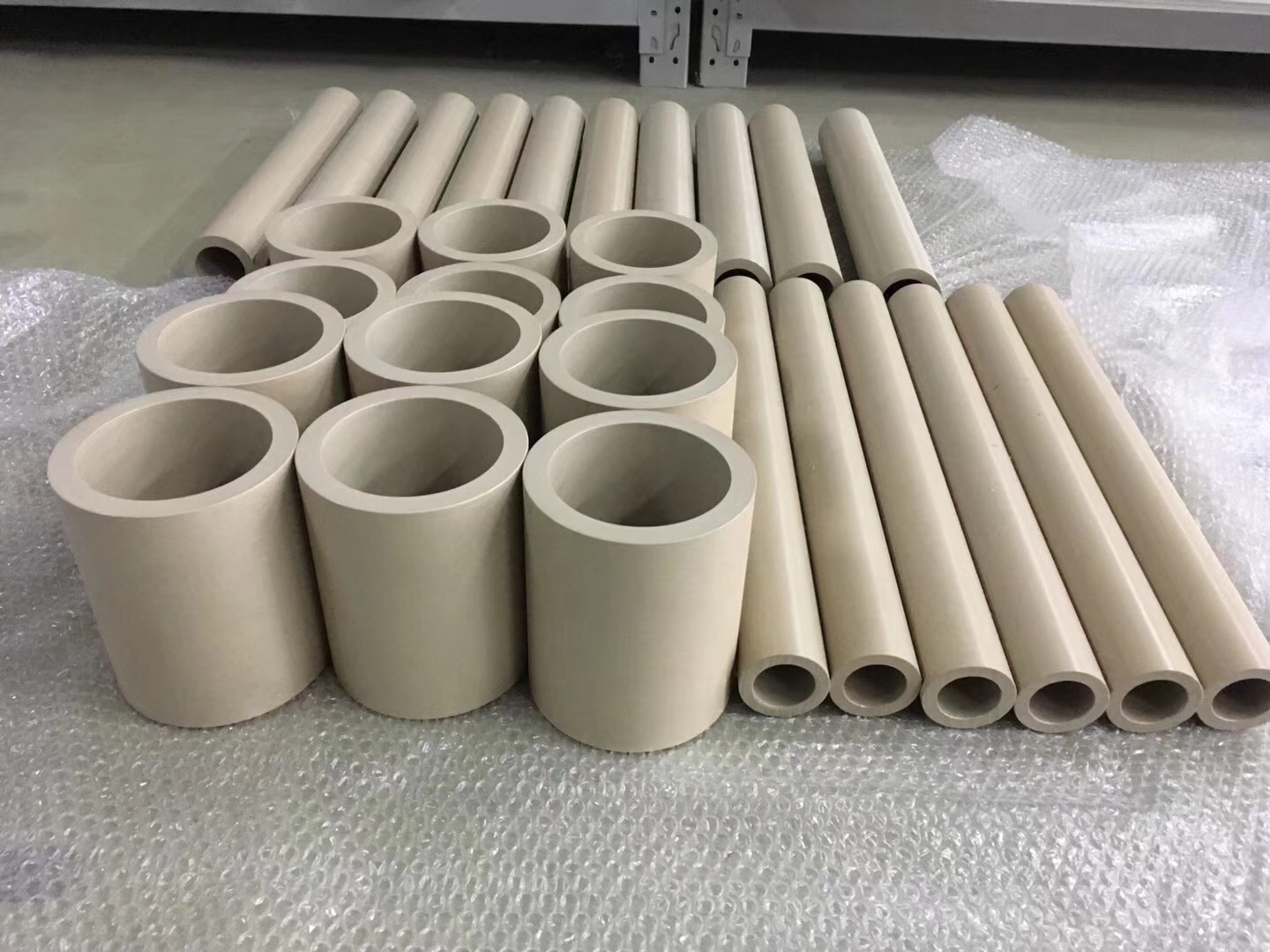

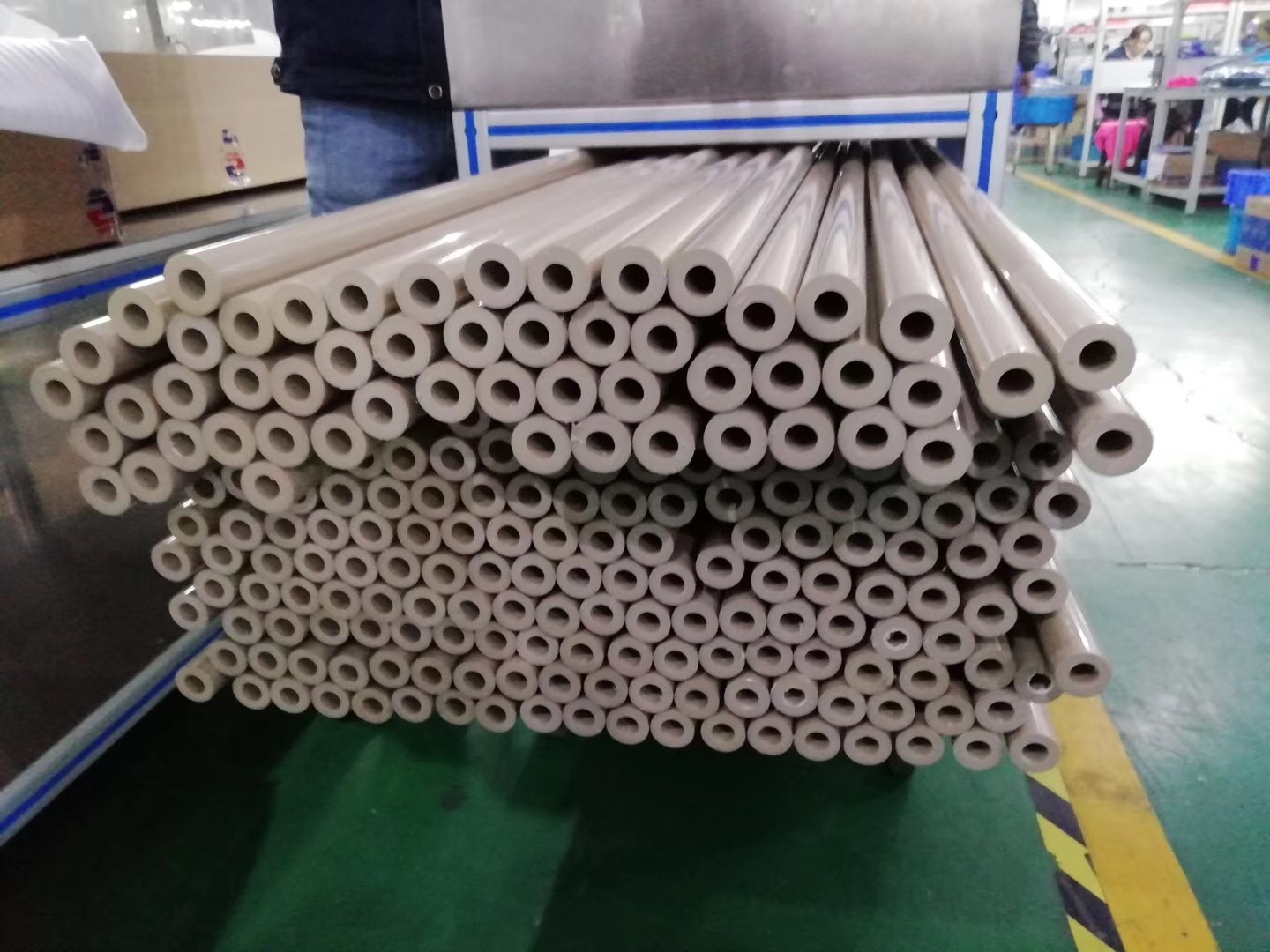

PEEK Tube
PEEK has outstanding properties like high and low temperature resistance, flame retardant.radiation resistance and mechanical properties, which makes it can be used as ultra high temperature conductor in aerospace industry.ln the petroleum industry, it can be used as the submerged pump motor winding wire and connecting line. In the atomic power plant, the winding coil which can be used as the nuclear island driving mechanism is used under irradiation conditions for a long time; it is also widely used in high-speed traction locomo- tives.
PEEK Tube Specification Table
| Serial number | ODxID(mm) | Serial number | ODxID(mm) | Serial number | ODxlD (mm) | Serial number | ODxlD (mm) |
| 1 | 61 x 35 | 29 | 113 x 81 | 57 | 184 x 150 | 85 | 283 x 201 |
| 2 | 61 x 39 | 30 | 113 x 89 | 58 | 189 x 134 | 86 | 283 x 226 |
| 3 | 64 x 35 | 31 | 119 x 59 | 59 | 189 x 157 | 87 | 283 x 260 |
| 4 | 64 x 39 | 32 | 119 x 89 | 60 | 192 x 150 | 88 | 284 x 244 |
| 5 | 66 x 30 | 33 | 120 x 99 | 61 | 203 x 122 | 89 | 284 x 248 |
| 6 | 66 x 35 | 34 | 122 x 93 | 62 | 205 x 169 | 90 | 289 x 260 |
| 7 | 66 x 45 | 35 | 126 x 86 | 63 | 205 x 181 | 91 | 293 x 260 |
| 8 | 71 x 49 | 36 | 126 x 103 | 64 | 207 x 174 | 92 | 293 x 266 |
| 9 | 73 x 41 | 37 | 129 x 99 | 65 | 209 x 134 | 93 | 303 x 235 |
| 10 | 78 x 48 | 38 | 130 x 99 | 66 | 214 x 137 | 94 | 303 x 239 |
| 11 | 78 x 55 | 39 | 134 x 54 | 67 | 224 x 128 | 95 | 305 x 262 |
| 12 | 82 x 35 | 40 | 134 x 71 | 68 | 222 x 141 | 96 | 324 x 262 |
| 13 | 82 x 50 | 41 | 134 x 98 | 69 | 224 x 191 | 97 | 324 x 277 |
| 14 | 82 x 58 | 42 | 134 x 104 | 70 | 224 x 194 | 98 | 334 x 239 |
| 15 | 86 x 53 | 43 | 134 x 109 | 71 | 228 x 210 | 99 | 335 x 294 |
| 16 | 91 x 45 | 44 | 134 x 114 | 72 | 237 x 142 | 100 | 342 x 239 |
| 17 | 91 x 56 | 45 | 135 x 67 | 73 | 237 x 145 | 101 | 345 x 315 |
| 18 | 91 x 69 | 46 | 142 x 74 | 74 | 237 x 169 | 102 | 362 x 270 |
| 19 | 94 x 70 | 47 | 142 x 118 | 75 | 239 x 210 | 103 | 362 x 288 |
| 20 | 97 x 56 | 48 | 144 x 110 | 76 | 242 x 219 | 104 | 362 x 312 |
| 21 | 97 x 66 | 49 | 155 x 120 | 77 | 243 x 161 | 105 | 376 x 343 |
| 22 | 97 x 81 | 50 | 160 x 89 | 78 | 249 x 119 | 106 | 377 x 277 |
| 23 | 105 x 75 | 51 | 160 x 112 | 79 | 251 x 177 | 107 | 377 x 313 |
| 24 | 105 x 78 | 52 | 160 x 130 | 80 | 251 x 186 | 108 | 413 x 354 |
| 25 | 105 x 79 | 53 | 160 x 140 | 81 | 255 x 190 | 109 | 428 x 366 |
| 26 | 113 x 43 | 54 | 171 x 127 | 82 | 260 x 214 | 110 | 428 x 392 |
| 27 | 113 x 59 | 55 | 171 x 150 | 83 | 261 x 220 | 111 | 453 x 392 |
| 28 | 113 x 69 | 56 | 172 x 134 | 84 | 266 x 233 | 112 | 597 x 447 |
