Products Description

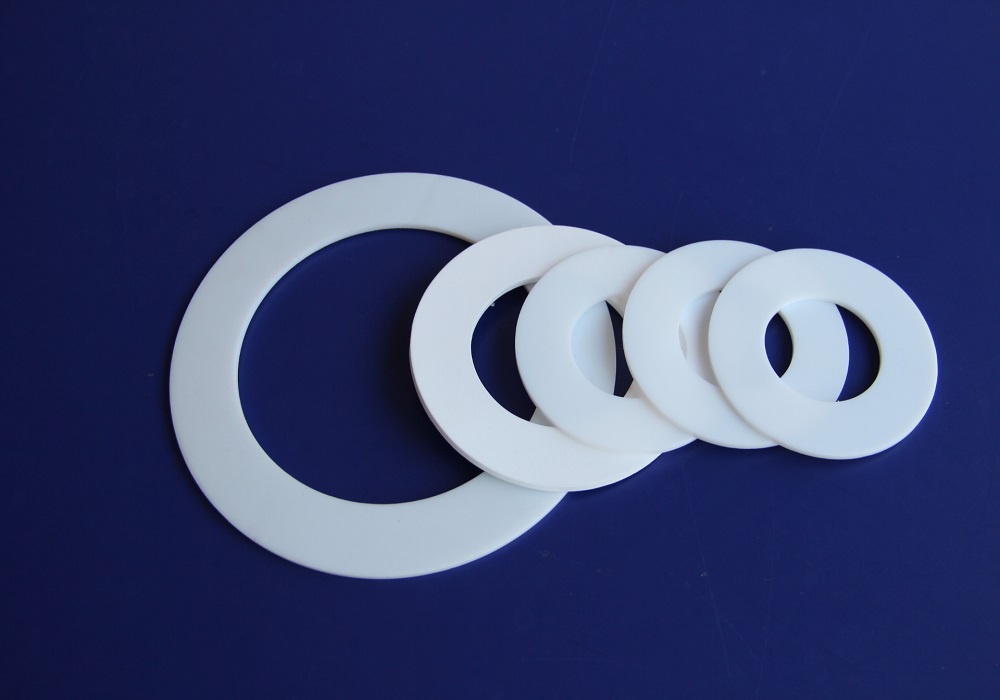

Main features of PTFE gasket :
1.Temperature resistance:
It is able to work stably between -180°C to +260°C.
2. Excellent chemical corrosion resistance:
Applicable medium includes oil, acid solution and almost all chemical materials.
3. Excellent non-sticky property :
With low friction coefficient it easier to remove those resin, dopes, oil and other sticky
things.
4. Anti-aging, weathering resistance.
5. Excellent insulation property.

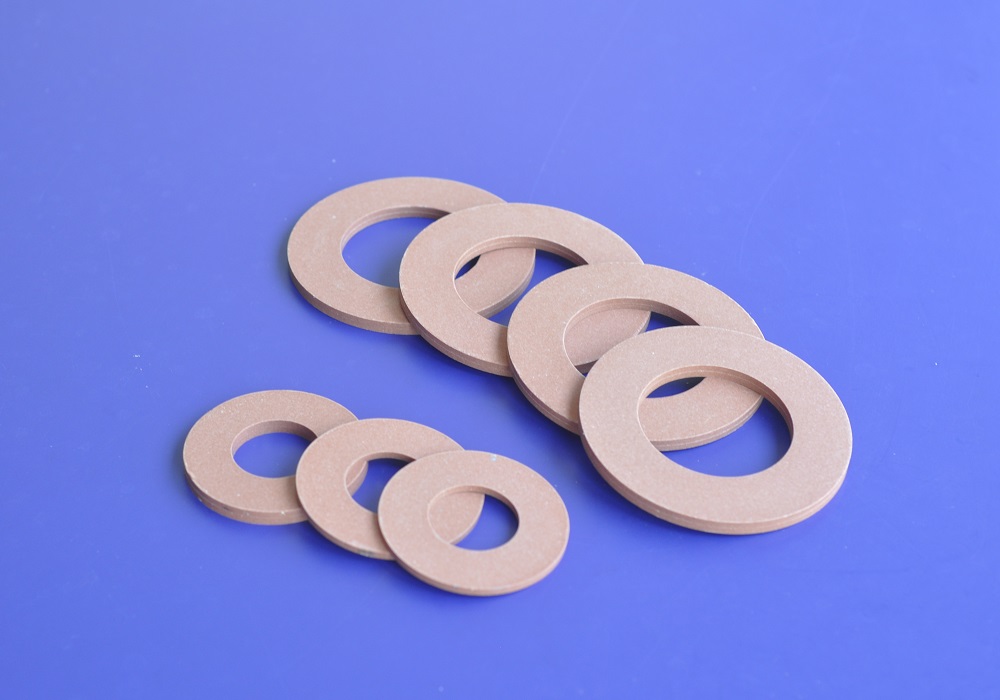

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass
fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.
Specifications
Item | Specifications |
Standard Gasket | ASME B 16.21 |
EN1514-1 | |
JIS B2404 | |
GBT 9126 | |
Additional Gasket | Available on customer’s request |
Diameter | ≤3000mm |
Thickness | 0.1-10mm |
Properties
Item | Properties | Unit |
Apparent density | 2.10-2.30- | g/cm3 |
Tensile Strength | ≥15 | Mpa |
Elongation at break | ≥150 | % |
