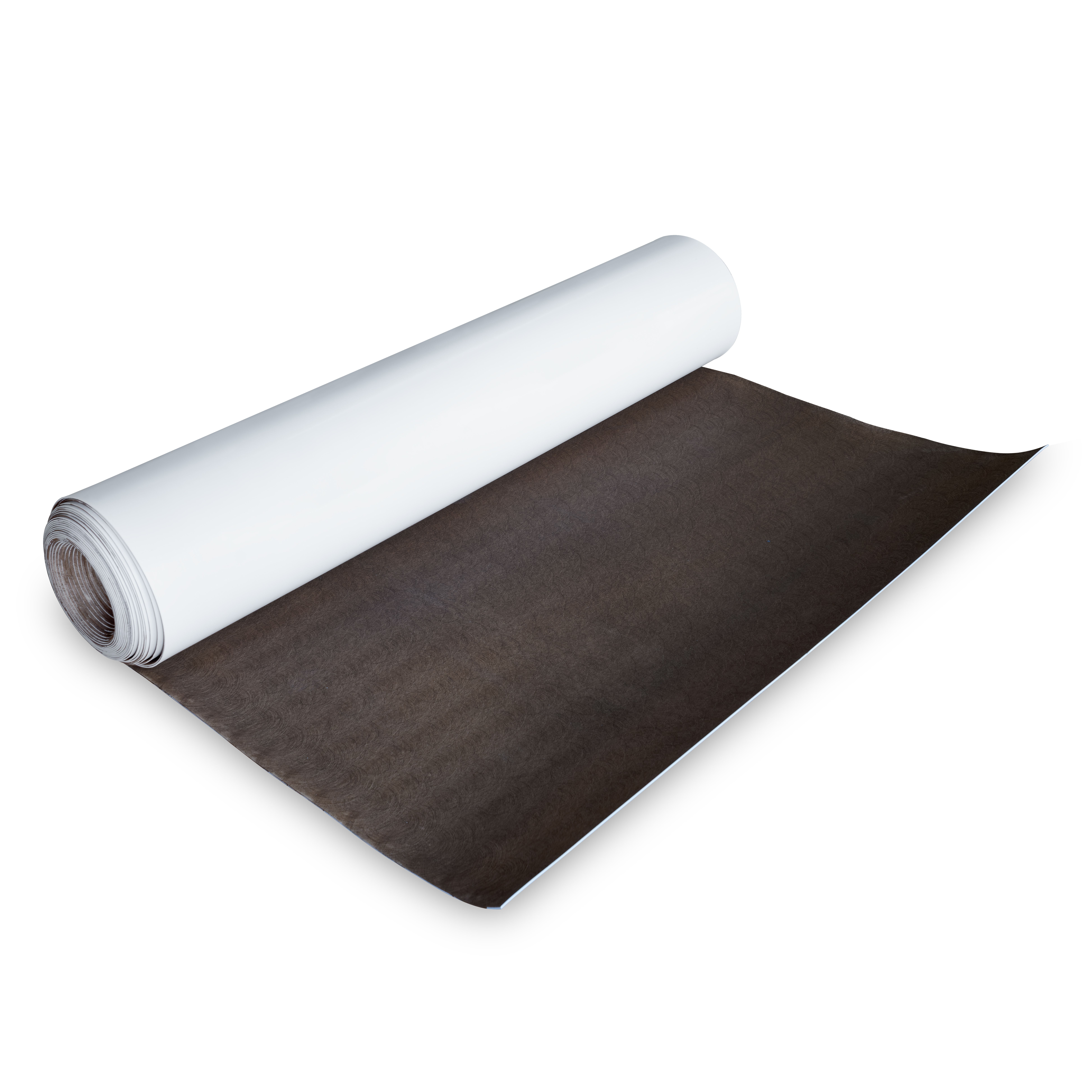

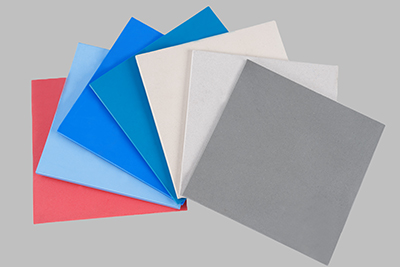

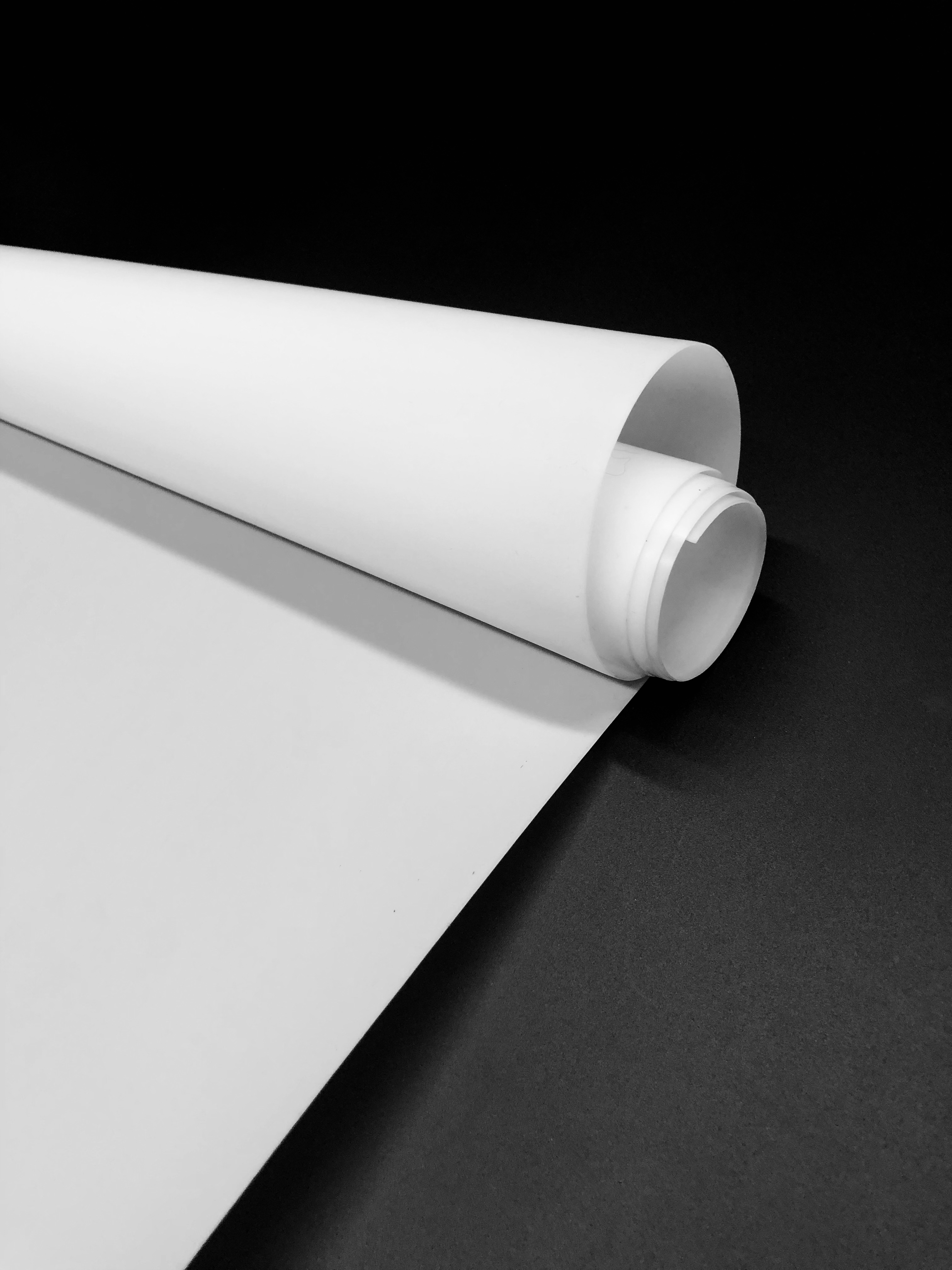

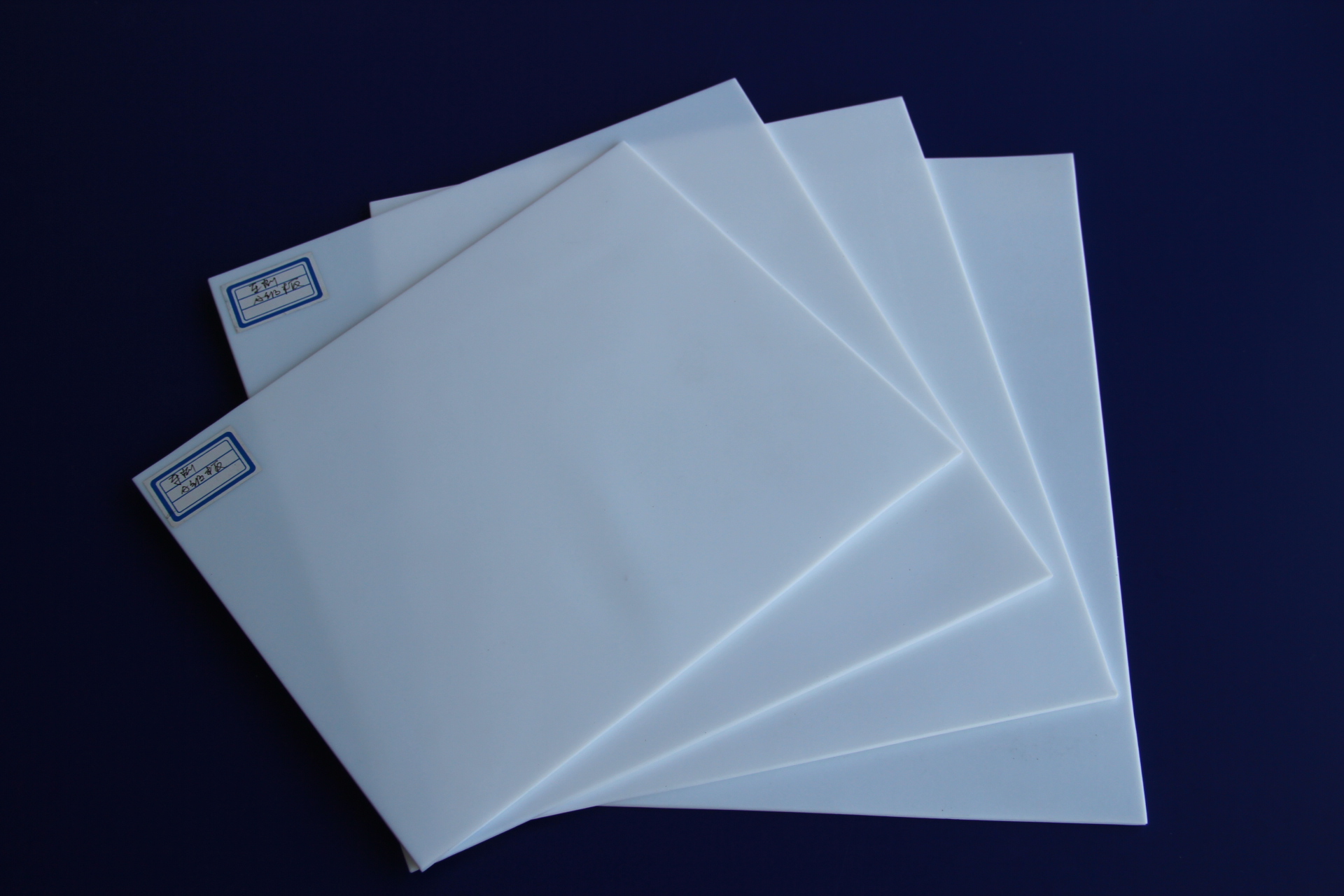

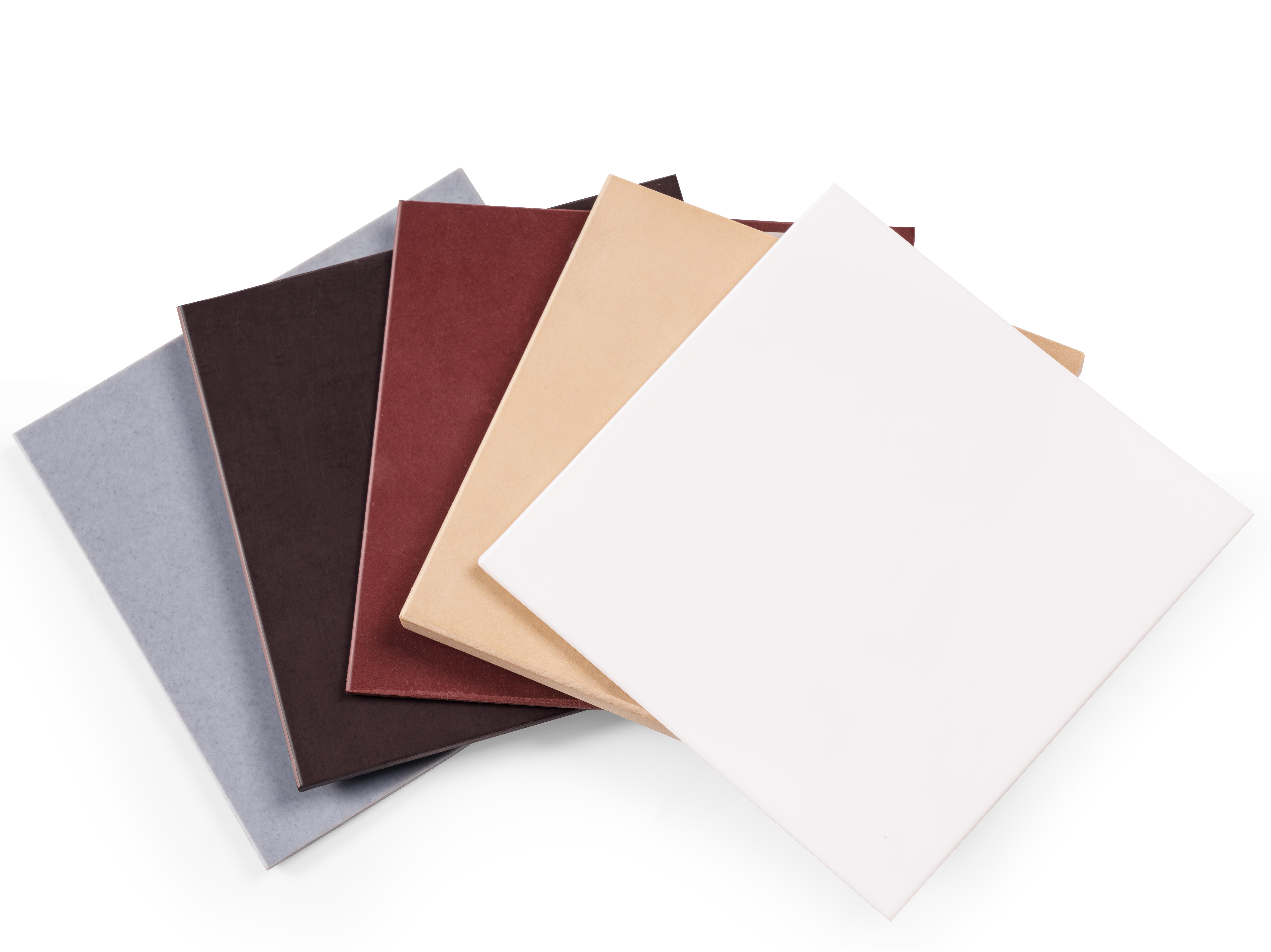

Products Description
PTFE skived Sheet is manufactured by technique of compacting,sintering,,rotary cutting with PTFE granular resin. It has good dielectric performance and non-aging,best anti chemistry corrosion ability and wide applying intension range.
Specifications
Thickness(mm) | Width(mm) 1000 | Width(mm) 1200 | Width(mm) 1500 | Width(mm) 2000 | Width(mm) 2700 |
0.1 | l | l | l | -- | -- |
0.2 | l | l | l | -- | -- |
0.3 | l | l | l | -- | -- |
0.4 | l | l | l | -- | -- |
0.5 | l | l | l | l | -- |
0.8 | l | l | l | l | -- |
1.0 | l | l | l | l | l |
1.5 | l | l | l | l | l |
2.0 | l | l | l | l | l |
2.5 | l | l | l | l | l |
3.0 | l | l | l | l | l |
4.0 | l | l | l | l | l |
5.0 | l | l | l | l | l |
6.0 | l | l | l | l | l |
7.0 | l | l | l | l | -- |
8.0 | l | l | -- | -- | -- |
Technical datas of virgin PTFE sheet
Item | ASTM | Data | Unit |
Mechanical Properties | |||
Density | D792 | 2.1~2.2 | g/m3 |
Tensile strength | D638 | ≥15 about 20 ~ 45 | MPa |
Elongation at break | D638 | ≥150 about 200~ 350 | % |
Compression strength | D695 | 24 | MPa |
ShoreD Hardness | D636 | 50-60 | - |
Friction coefficient | on steel | 0.01 | - |
Thermal Properties | |||
Working Temp | -180 ~ 260 | °C | |
Melting point | 330 | °C | |
Produce Max. Temp | 390 | °C | |
Fire Resistance | UL94 | V-0 | |
Brittle point temperature | -268 | °C | |
Electrical properties | |||
Dielectric strength | D149 | >1400 | kV/mm |
Volume resistivity | D257 | >1018 | Ω·cm |
Surface Resistivity | D257 | >1016 | Ω |
Dielectric constant | D150 | 2.1 | |
Conventional properties | |||
Chemical solvent resistance | Excellent | ||
Water absorption (25℃ ) | D570 | 0.01 | 24h/% |
limit oxygen index | D2963 | >95 | |
