Product Description

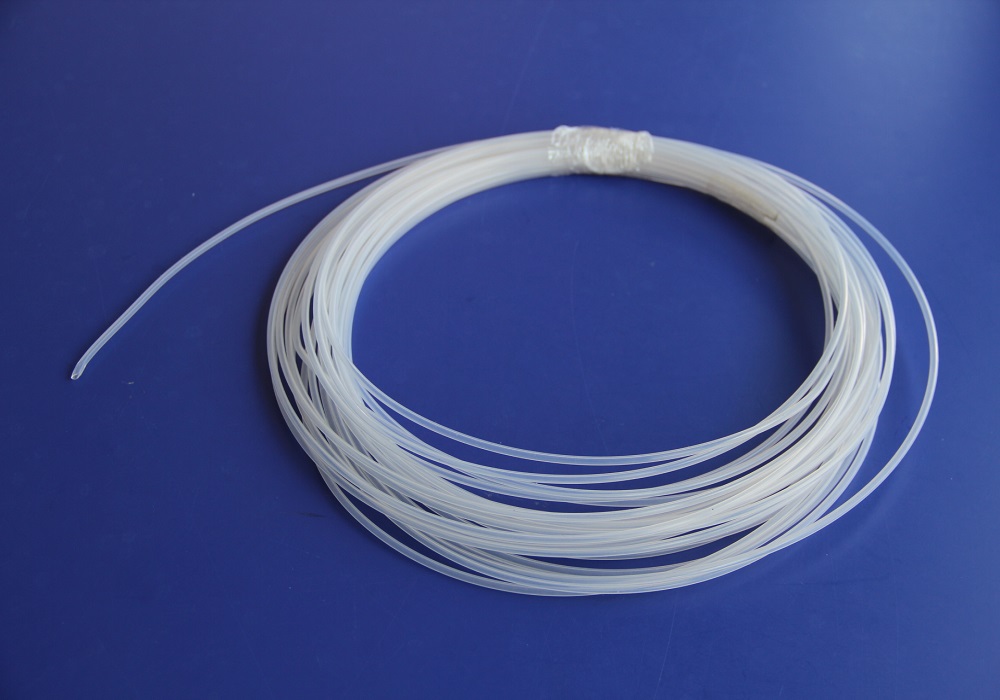

Main features of PTFE tube:
1. Temperature resistance ---It is able to work stably between -180°C to +260°C.
2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.
3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky
things.
4. Anti-aging, weathering resistance.
5. Excellent insulation property.

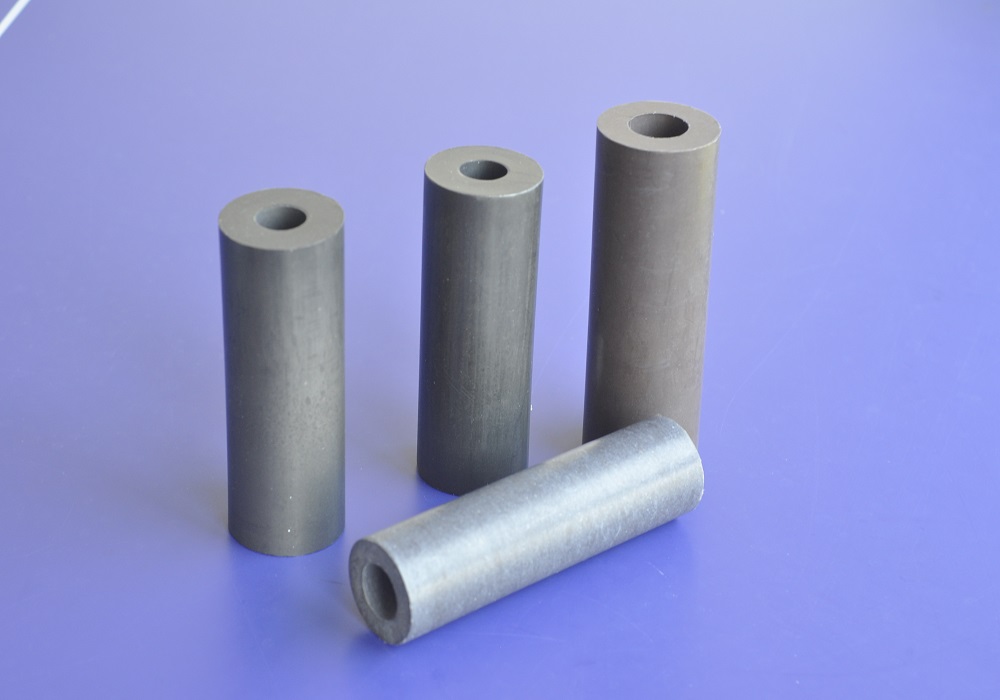

6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass
fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.
Specifications
Item | OD(mm) | Wall Thickness(mm) | Length(mm) |
Paste Extruded Tube | 0.5~25 | 0.1~2.5 | Continuous length according to customer's requests |
Plug Extruded Tube | 25~250 | 1.5~8 | |

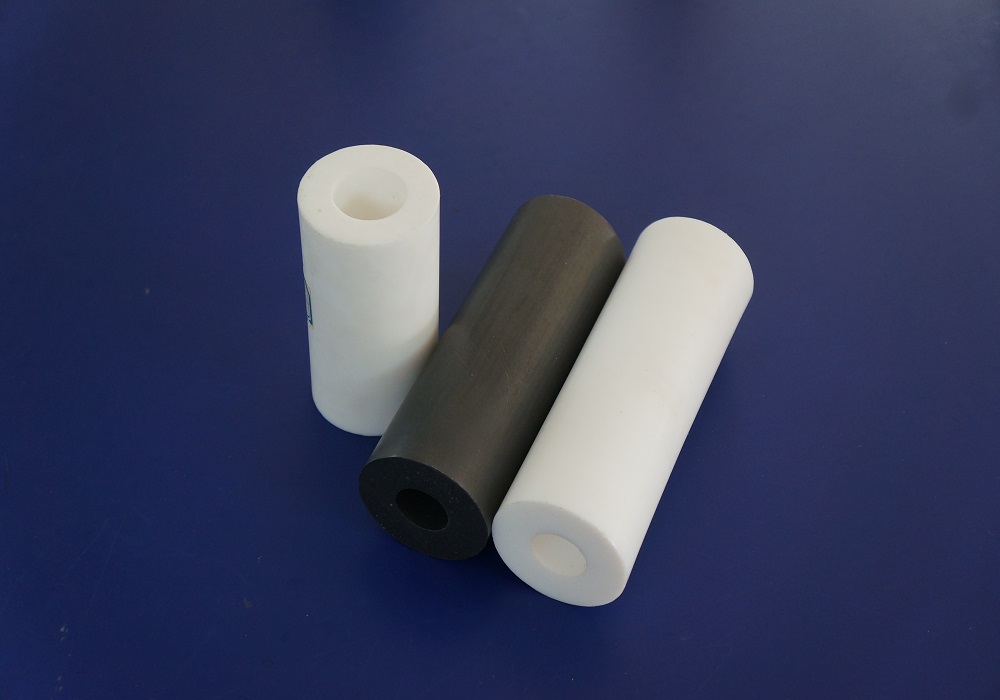

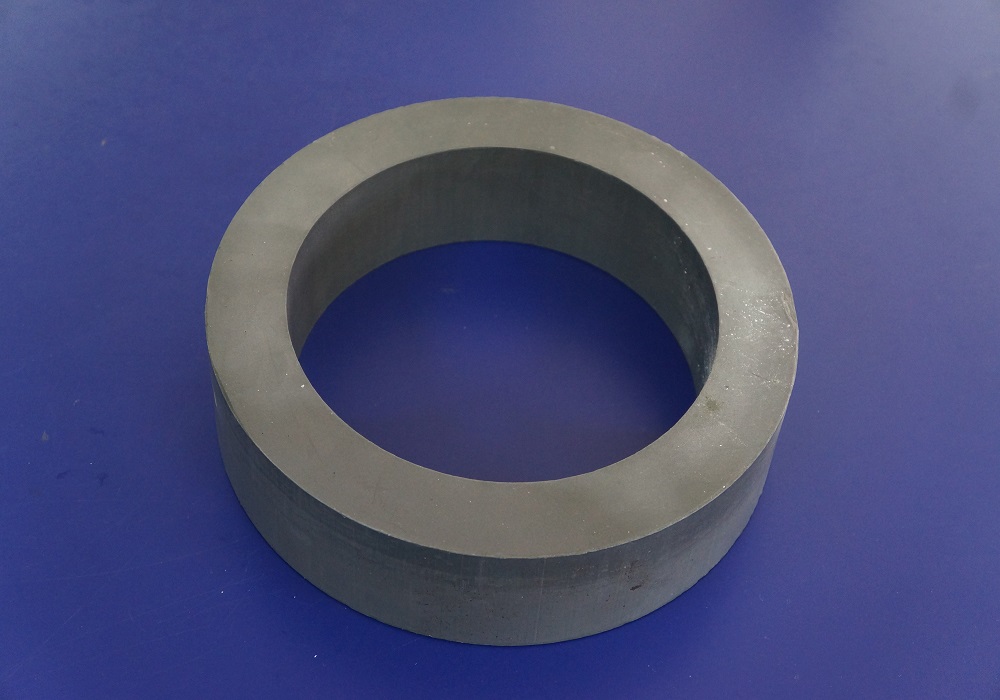

Molded Tube | 25~2000 | 5~500 | 50~300 |
Properties
Product Description
Main features of PTFE tube:
1. Temperature resistance ---It is able to work stably between -180°C to +260°C.
2. Excellent chemical corrosion resistance ---Applicable medium includes oil, acid solution and almost all chemical materials.
3. Excellent non-sticky property - --With low friction coefficient it easier to remove those resin, dopes, oil and other sticky
things.
4. Anti-aging, weathering resistance.
5. Excellent insulation property.
6. Filled material: Filled PTFE products has more outstanding performance by adding filler such as carbon, graphite, bronze, glass
fiber, carbon fiber, MOS2, PEEK, PI, POB BaSO4, SiO2, glass bead, polyamide.
Specifications
Item | Properties | Unit |
Apparent density | 2.10-2.30 | g/cm3 |
Tensile Strength | 25 | Mpa |
Elongation at break | ≥150 | % |
Item | OD(mm) | Wall Thickness(mm) | Length(mm) |
Paste Extruded Tube | 0.5~25 | 0.1~2.5 | Continuous length according to customer's requests |
Plug Extruded Tube | 25~250 | 1.5~8 | |
Molded Tube | 25~2000 | 5~500 | 50~300 |
Properties
Item | Properties | Unit |
Apparent density | 2.10-2.30 | g/cm3 |
Tensile Strength | 25 | Mpa |
Elongation at break | ≥150 | % |
